About this item

Widely applied in Checking Short Circuit, Locating Open Circuit, Wire Tracing, Wire Identification etc. Quickly and easily target broken wires, current leaks and so on
Diagnose and judge the break point from Slight Change of the continuous audio signal from receiver. Transmitter and receiver LEDs show open or short circuit conditions
Operates on DC voltages from 6 to 42 Volts under any circumstances

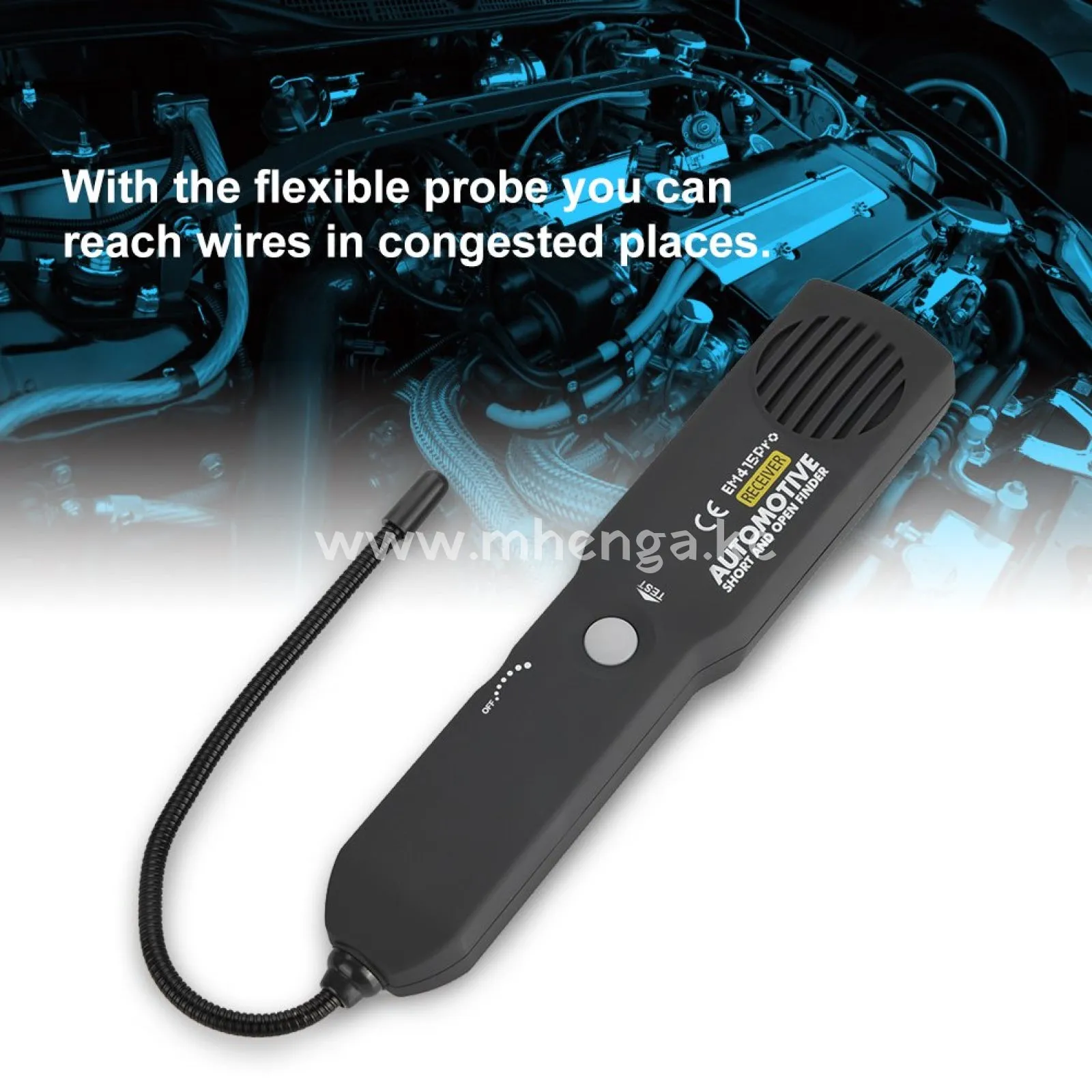

7" flexible Probe allows reaching wires in congested places; Adjustable sensitivity for all tracing needed. Internally protected against power surges and overloads

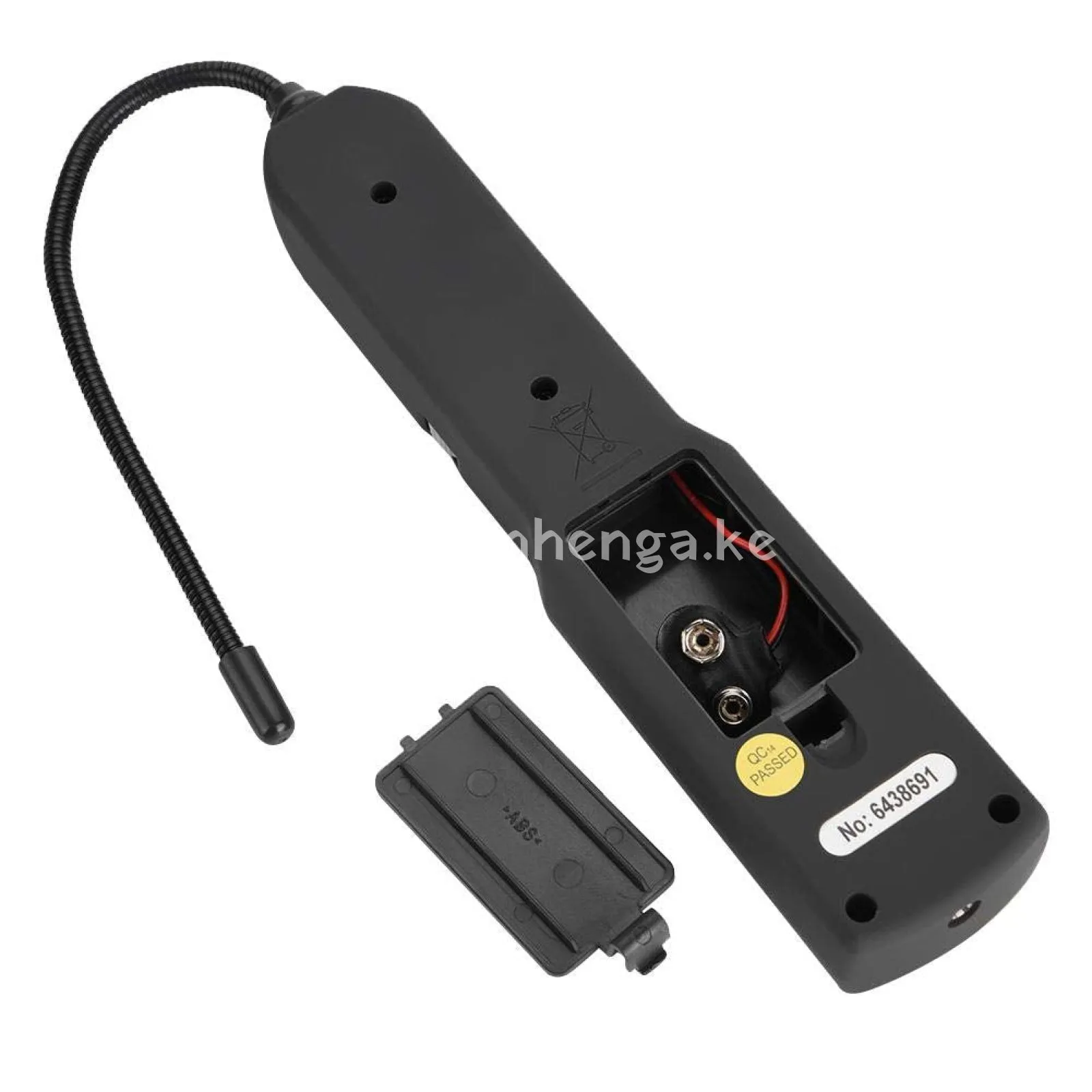

Delicate bag included, easy for carring and storage. Powered by 2 pieces 9V 6F22 Batteries (NOT Provided by Seller)
Fit type: Universal Fit

From the manufacturer

all-sun Automotive Cable Wire Tracker Car Tracer Finder Test Short & Open DC 6~42 Volts

This instrument is designed to identify and trace wires or cables without damaging the insulation.

You can also use it in checking for short circuit and loacting open circuit and so on.

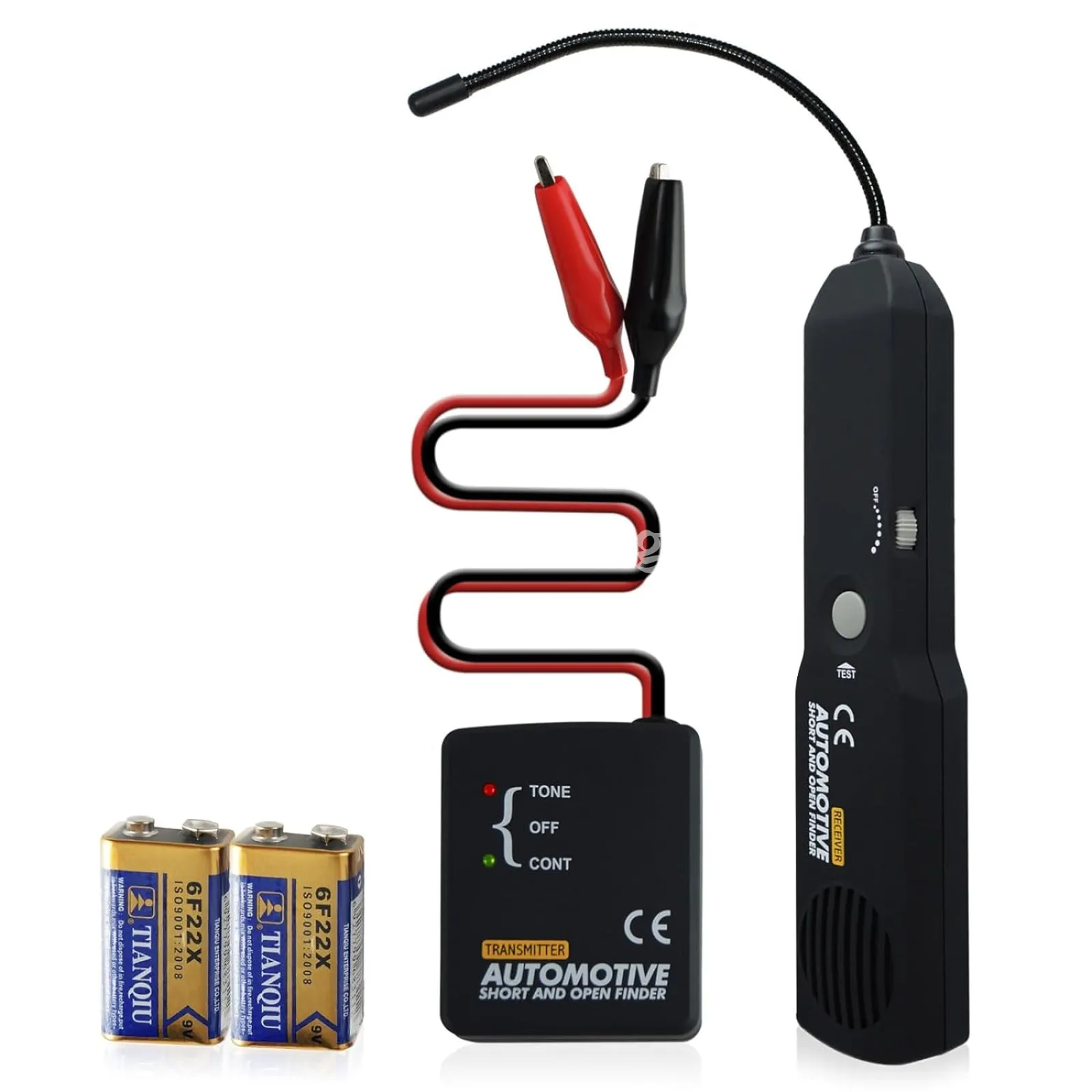

There are a Sender and a Receiver included in the instrument.

Receiver

Test Button & Rotary Switch

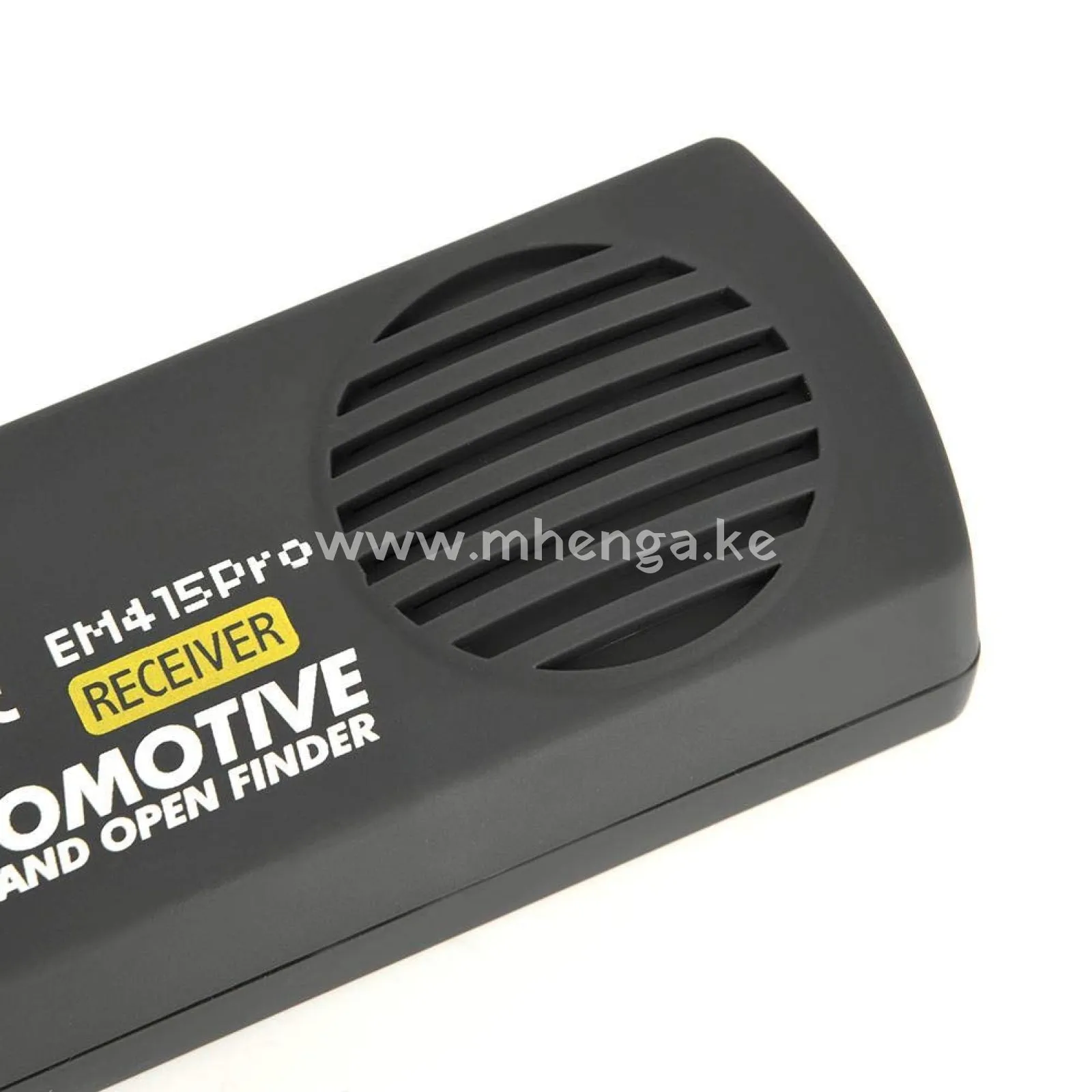

Speaker

Sender

How to use the probe?

The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach wires in ongested or difficult areas.

Depending on the circuit characteristic and sensitivity settings, the probe will pick up the signal from the wire in a range of positions.

However, for the best possible range the Receiver’s probe tip (black cap) should be positioned perpendicular (at 90o) to the wire being traced and either above or below it.

all-sun Automotive Cable Wire Tracker

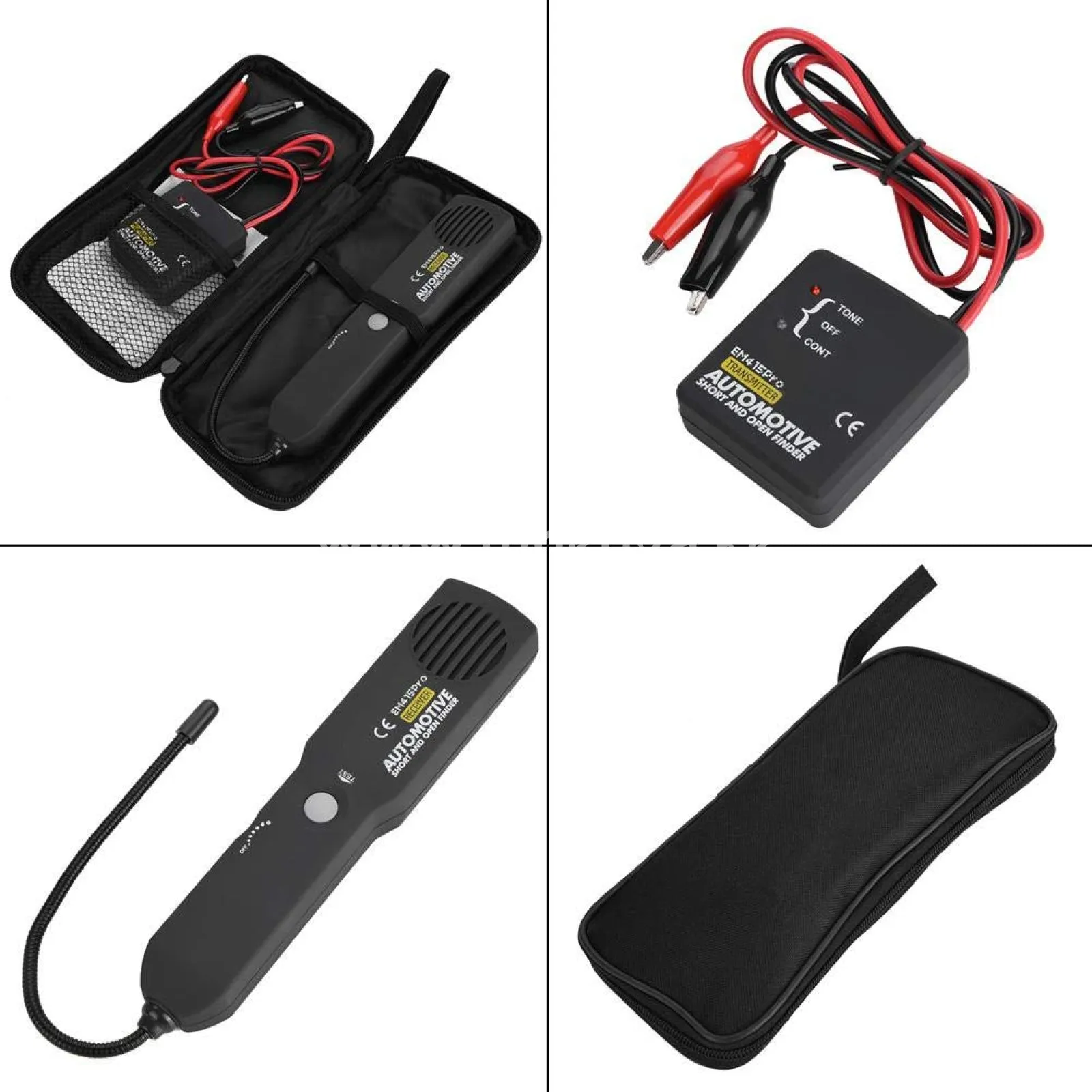

Package Content

1 * Automotive Short and Open Finder Sender

1 * Automotive Short and Open Finder Reciever

1* English User Manual

1* Carrying Bag

(Batteries NOT included)

Specifications

Receiver:

On/Off button

Test button

Probe length: 7" flexible probe

Sender:

Tone/Off/Cont (Continuity) switch

Tone/Cont (Continuity) LEDs

Red and black test leads cable (61cm length, approximate)

Receiver Dimensions: 38.5 x 4 x 2.3cm (H x W x D, approximate)

Sender Dimensions: 6.5 x 5.6 x 2.1cm (H x W x D, approximate)

Product Description

This instrument is designed to identify and trace wires or cables without damaging the insulation. You can also use it in checking for short circuit and exacting open circuit and so on. There are a sender and a receiver included in the instrument

Product information

Technical Details

Brand

‎ALLOSUN

Power Source

‎Battery Powered

Style

‎Modern

Color

‎Black

Item Weight

‎0.68 Pounds

Item Dimensions LxWxH

‎1.77 x 1.18 x 8.07 inches

Manufacturer

‎all-sun

Model

‎Auto Cable Wire Tracker

Item Weight

‎10.9 ounces

Product Dimensions

‎1.77 x 1.18 x 8.07 inches

Item model number

‎EM415PRO

Batteries

‎2 Lithium Polymer batteries required.

Is Discontinued By Manufacturer

‎No

Manufacturer Part Number

‎EM415PRO
