Name: Oneway Wolverine Grinding Jig
SKU: 142726

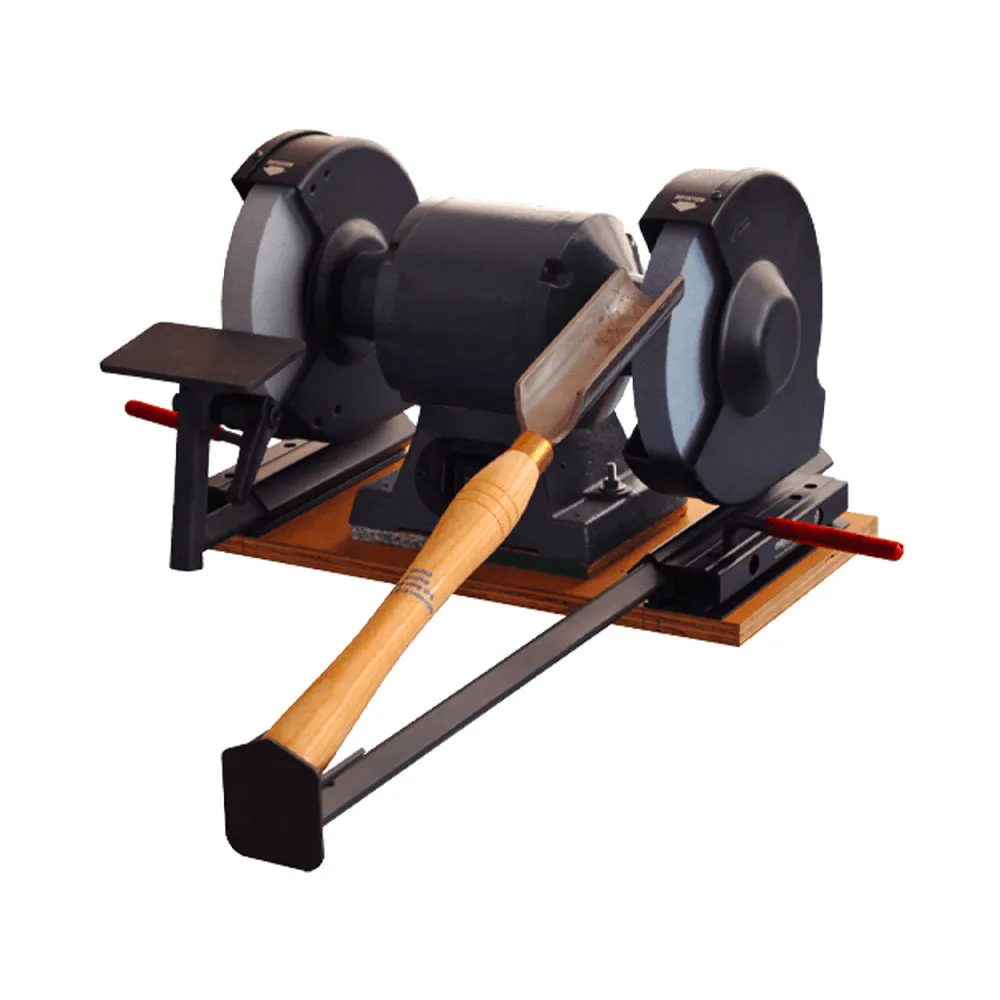

The Wolverine Grinding Jig is the core component of the Oneway Wolverine line of grinding products. The Wolverine System was designed to turn a low cost grinder into the ultimate tool for sharpening tools. It fits most 6”, 7”, 8”, and 10” grinders with little or no modification (please specify if to be used with a 10” grinder).

Owning the Wolverine Grinding Jig will ultimately save you time, frustration, and money. You can now grind your tools properly the first time. Uniform cutting edges and single facet bevels will give you safer, more predictable tools. Because you are grinding your tools less, both your wheels and tools will last longer.

The Wolverine comes with two aluminum anodized bases, one for each side of the grinder. By mounting one under each wheel, grinding operations can rapidly be performed on either side of your grinder without having to reposition bases. Because bases mount directly under grinding wheels they are completely out of the way for occasional freehand grinding.

Bases are equipped with cam clamping that makes removing and installing attachments possible in seconds. The cam forces all attachments rigidly into the base which eliminates all play. This system is especially important as it allows the platform to be moved from the right to the left side of the grinder without disturbing the angle and maintaining a safe minimum clearance from the grinding wheel. This clearance should always be set from 1/16” to 1/8” from the wheel.

This Grinding Jig also comes equipped with an adjustable angle sturdy platform that has a 3” x 5” working area. It is made from 1/4” thick steel and is machined square after welding. The result is a platform that is both incredibly sturdy and square. This platform can be used on both the left and right hand sides of the grinder. An adjustable speed handle makes adjustments quick and easy and ensures that the handle is never in the way.

The V-Arm slides in the base and holds your bevel angle constant. The handle of the tool is set into the Vee-Pocket and the tool’s bevel angle can be set while the grinder is off. It then becomes a simple process of fine adjustments to get the exact same grind every time. The V-Arm is long enough to hold any standard tool. Adjusting the arm is as easy as unlocking the clamping lever, moving the arm in or out and re-clamping the lever.

The Grinding Jig can be easily used to sharpen the following tools:

Gouges
Chisels
Scrapers
Parting tools
Skews
Carving tools

The Wolverine System was designed to replace conventional light duty toolrests with heavy duty universal grinding and dressing jigs for low cost grinders. Properly installed, with balanced wheels, this system will outperform grinders costing hundreds of dollars more.

Helpful tip: Use with the or for improved grinding of side grinds and fingernail shapes.

[TABS]

Features

Two Base System allows rapid grinding operations on either side of your grinder without having to re-position bases
3" x 5" adjustable platform can be used on both the left and right hand sides of the grinder
Adjustable speed handle makes adjustments quick and easy and ensures that the handle is never in the way
